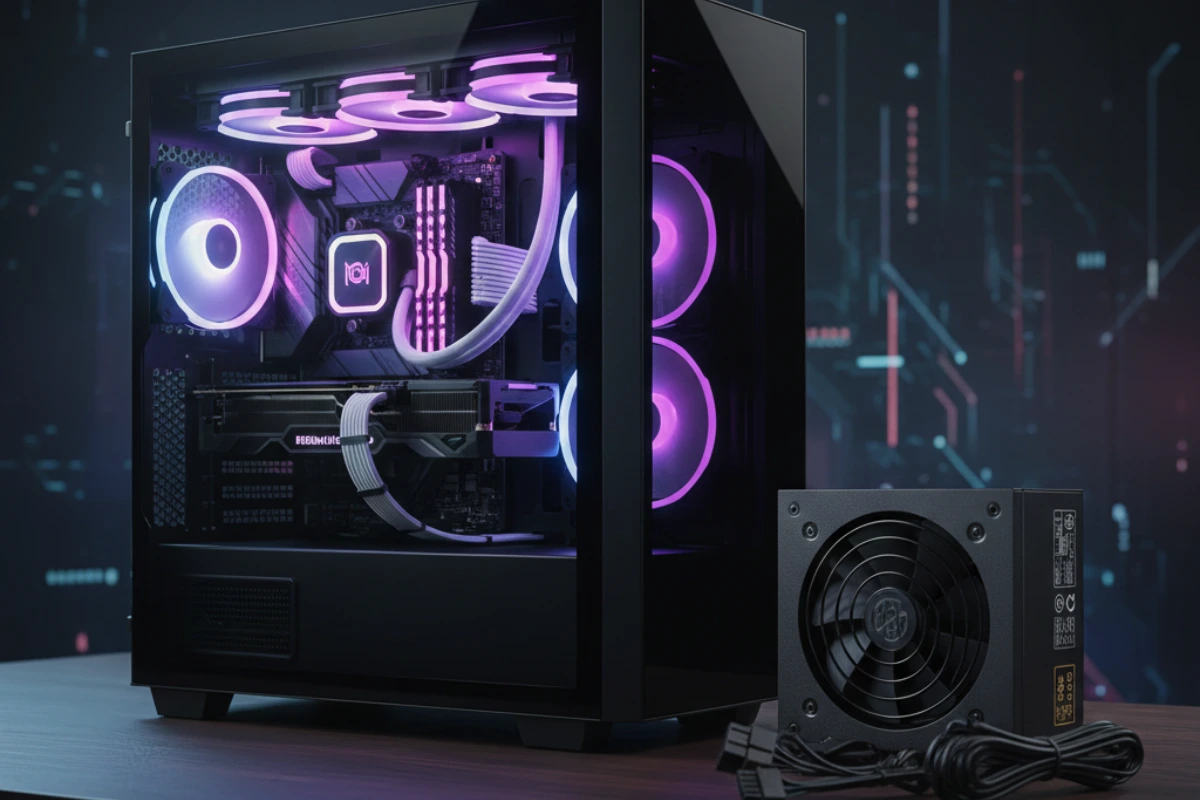

Gaming PC Case and PSU Guide: Build Essentials

The case and power supply are the two components people overlook until something goes wrong. I learned this lesson the hard way back in 2015 when a cheap PSU died and took my graphics card with it. These foundation pieces matter more than flashy RGB or the latest CPU because they determine how reliable and maintainable your system will be.

Why Your PSU Choice Matters

Power supplies do more than just provide electricity. Quality units deliver clean stable power that protects sensitive components from voltage fluctuations. Cheap PSUs use inferior capacitors and lack proper protection circuits. When they fail and they will fail they often damage other components.

The 80 Plus certification system rates efficiency at different load levels. Bronze units hit 82-85% efficiency while Titanium reaches 90-94%. Higher efficiency means less heat generation and lower electricity bills over time. For a gaming system pulling 400-500 watts the difference adds up to maybe $15 yearly.

Modular cabling simplifies builds significantly. Non-modular PSUs have all cables permanently attached creating cable management nightmares in compact cases. Fully modular units let you attach only needed cables. Semi-modular keeps essential motherboard and CPU cables attached while making GPU and peripheral cables optional.

Calculating Your Wattage Needs

Most gaming systems need less power than people think. A Ryzen 7 7700X pulls 105 watts under load. An RTX 4070 uses 200 watts. Add 50 watts for motherboard, RAM and storage. That’s 355 watts total. A 650 watt PSU provides plenty of headroom.

PSUs operate most efficiently at 50-80% load. Running at 100% capacity constantly reduces lifespan and efficiency drops. This is why you want headroom but not excessive oversizing. A 1000 watt PSU for a 400 watt system wastes money.

High-end builds with RTX 4080 or 4090 cards need serious power. The 4090 alone can spike to 450 watts. Factor in a power-hungry CPU and you’re looking at 750-850 watt PSU minimum. Always add 150-200 watts above your calculated maximum draw for safety margin.

Transient power spikes catch people off guard. Modern GPUs can briefly pull 150% of their rated TDP. If your PSU can’t handle these millisecond spikes the system crashes. Quality PSUs include over-current protection that handles transients without triggering shutdowns.

80 Plus Certification Levels

Bronze certification represents the minimum I recommend for gaming builds. Efficiency hits 82% at 20% load and 85% at 50% load. Budget PSUs often use Bronze certification with decent component quality for $60-80 in the 650 watt range.

Gold certification provides 87-90% efficiency with better components and typically longer warranties. The extra cost runs $20-30 over Bronze for equivalent wattage. For systems running many hours daily the improved efficiency pays back over 3-4 years.

Platinum and Titanium certifications target enthusiasts and workstations. Efficiency gains over Gold are minimal for gaming use. The premium pricing rarely justifies the small efficiency improvement. I’ve used Gold rated PSUs for years without issues.

The certification only measures efficiency not build quality or reliability. A Bronze unit from Seasonic or EVGA often outlasts a Gold unit from no-name manufacturers. Brand reputation and reviews matter more than certification level.

Single Rail vs Multi-Rail Design

Modern PSUs typically use single 12V rail designs providing all power through one high-amperage rail. This simplifies power delivery and works well with current components. Multi-rail designs split power across several lower-amperage rails with individual over-current protection.

For gaming builds single rail makes more sense. GPU power spikes don’t risk tripping individual rail limits. Quality single rail PSUs include over-power and over-current protection at the PSU level providing adequate safety.

The debate between single and multi-rail is mostly academic now. Both designs work reliably when implemented properly. Focus on total wattage and component quality rather than rail configuration.

PCIe 5.0 Power Connectors

NVIDIA’s 12VHPWR connector on RTX 40-series cards caused controversy initially. The single connector replaces multiple 8-pin cables providing up to 600 watts. Early adapter cables had issues but updated designs with proper sense pins work reliably.

Native 12VHPWR cables from your PSU are preferable to adapters. Many newer PSUs include these cables directly. Make sure the connector fully seats with the cable bent gently. Sharp bends near the connector caused the melting issues people experienced.

Older PSUs without native 12VHPWR cables work fine with quality adapters included with GPUs. Just verify the adapter uses all four sense pins. Cheap third-party adapters without proper sense pin implementation can cause problems.

Brand Recommendations for PSUs

Seasonic manufactures their own units and OEM for other brands. Their Focus and Prime series offer excellent reliability across wattages. Ten year warranties on most models demonstrate confidence in longevity. Prices run slightly higher but quality justifies the premium.

Corsair’s RM and RMx series provide solid performance with full modular cables. The RM750x at $110 represents excellent value for mainstream gaming builds. Their newer RMe series updates designs with PCIe 5.0 support.

EVGA exited the GPU market but still produces quality power supplies. Their G6 and G7 series offer competitive pricing with good efficiency ratings. Customer support handles warranty issues promptly based on my experiences.

Super Flower makes premium PSUs with excellent component quality. Their Leadex series competes with top-tier Seasonics. Availability varies by region but worth seeking out for high-end builds.

Be Quiet and Fractal Design focus on silent operation. Their PSUs use larger fans spinning slower for quieter acoustics. Performance matches mainstream options while running nearly silent under typical loads.

PC Case Selection Fundamentals

Your case choice impacts thermal performance, noise levels and build experience significantly. Cheap cases with poor airflow strangle component performance through heat buildup. Invest $80-120 here for a quality foundation that lasts multiple builds.

Airflow-focused designs prioritize cooling over silence. They feature mesh front panels and multiple fan mounts. GPU and CPU temperatures run 5-10 degrees cooler than restrictive cases. This matters for maintaining boost clocks under sustained loads.

Silent cases use sound-dampening foam and solid panels to reduce noise. Airflow suffers compared to mesh designs but quality silent cases still cool adequately. If you prioritize quiet operation over maximum performance these work well.

Tempered glass side panels look great but add weight and cost. Acrylic scratches easily while glass can shatter if dropped. Steel or mesh side panels work fine if you don’t care about showing off components.

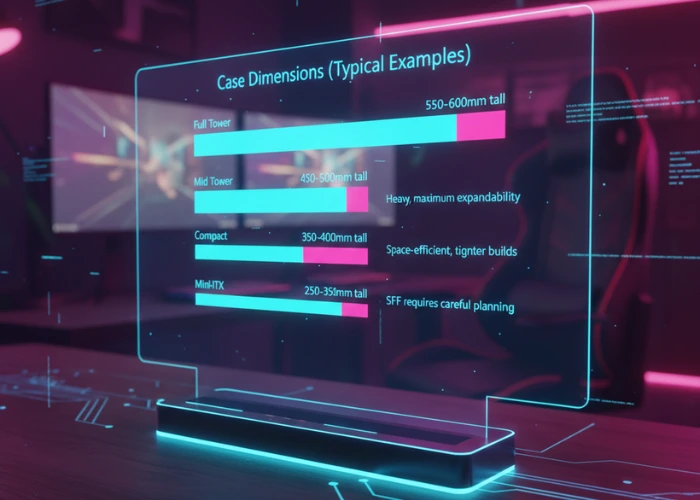

Case Size and Form Factor

Full tower cases offer maximum space and flexibility. They accommodate E-ATX motherboards and massive GPU coolers without clearance issues. The downside is size and weight making them awkward to move. I only recommend full towers for custom water cooling builds.

Mid tower represents the sweet spot for most gaming builds. ATX and Micro-ATX boards fit comfortably with room for multiple GPUs and plenty of storage. Quality mid towers like the Fractal Meshify 2 or Lian Li Lancool 216 provide excellent airflow in manageable dimensions.

Compact and Mini-ITX cases appeal to space-constrained setups. Building in these requires more planning around component clearances. Cable management becomes challenging in tight spaces. Thermals can suffer without careful component selection and fan configuration.

Airflow Configuration

Positive pressure with more intake than exhaust keeps dust out better. The slight pressure differential prevents dust from entering through unfiltered gaps. Run two or three intake fans with one or two exhaust fans.

Negative pressure with more exhaust than intake can improve GPU cooling slightly. Hot air evacuates faster but dust accumulates more readily. I prefer positive pressure for easier maintenance.

Front intake bottom intake and top/rear exhaust creates effective airflow patterns. Cool air enters from the front washing over the GPU then rises naturally as it heats before exiting out top and rear. This leverages natural convection.

Fan placement matters more than fan count. Three well-placed fans often outperform six fans in poor locations. Focus airflow directly over heat-generating components rather than general case ventilation.

GPU Clearance and Support

Modern high-end GPUs stretch 320-360mm long with triple-fan coolers. Verify your case supports the length before buying. Most mid towers handle 320mm but check manufacturer specs. Some cases list clearance with and without front radiators installed.

GPU sag affects heavy cards over time. Reinforced PCIe slots on motherboards help but additional support prevents long-term damage. Many cases include GPU support brackets. Third-party supports work too if your case lacks this feature.

Vertical GPU mounting looks clean but can hurt thermals in cases with solid side panels. The GPU fans sit close to glass restricting airflow. Cases designed for vertical mounting include ventilated riser brackets maintaining adequate spacing.

Cable Management Features

Rubber grommets around cable routing holes protect cables and improve aesthetics. Cheap cases use sharp stamped holes that can damage cable sleeving over time. Quality cases include grommets at all routing points.

PSU shrouds hide the power supply and cable mess at the bottom of the case. This makes builds look cleaner even with mediocre cable management. Most modern cases include shrouds with some offering removable designs.

Velcro straps work better than zip ties for cable management. You can reposition cables easily without cutting ties. Many cases include reusable straps at strategic locations behind the motherboard tray.

Adequate space behind the motherboard tray matters for cable routing. Budget cases provide 15-18mm which feels cramped. Premium cases offer 25-30mm making cable management significantly easier. The extra room is worth paying for.

Storage Mounting Options

Tool-less drive bays simplify installation though I rarely swap drives enough to care. What matters more is having enough mounts for your storage needs. Two 2.5 inch SSD mounts plus two 3.5 inch HDD cages covers most use cases.

Many modern cases eliminate 3.5 inch bays entirely focusing on SSD mounting. This works fine since most gamers use only M.2 NVMe drives. If you need bulk HDD storage verify the case includes appropriate mounting.

Behind-motherboard-tray SSD mounts keep drives hidden. Some cases offer 3-4 mounting points here which is plenty for most builds. Mounting location doesn’t affect SSD performance so putting them out of sight makes sense.

Top Case Recommendations by Budget

Under $80 the Montech Air 903 Max provides excellent airflow with four included fans. The mesh front and top panels ensure good thermals. Build quality is decent for the price with adequate cable management space.

Around $100 the Fractal Design Meshify 2 Compact offers premium features in mid tower form. Excellent airflow, quality construction and smart internal layout make building easy. It’s my go-to recommendation for mainstream gaming systems.

The Lian Li Lancool 216 at $110 includes three large 160mm fans providing strong airflow with low noise. Internal space accommodates large GPUs easily. Cable management is straightforward with good routing options.

For premium builds the Fractal Torrent at $180 focuses airflow through two massive 180mm front intakes. GPU temperatures drop significantly compared to standard layouts. The unique design prioritizes cooling performance over everything else.

Compact cases like the SSUPD Meshlicious at $120 pack ITX builds into minimal space. Quality construction and clever layout work well but expect a more challenging build process. Only choose compact cases when space constraints require them.

Front Panel Connectivity

USB-C on the front panel has become essential. Most motherboards now include USB 3.2 Gen2 Type-C headers making front connectivity possible. Verify your case and motherboard both support this before assuming it will work.

Audio jacks on top or front panels provide convenient headphone access. Rear panel audio works fine but front access is more practical during gaming. Case audio quality depends on cable shielding more than jack quality.

Power and reset buttons should feel solid not mushy. Cheap cases use flimsy buttons that break or stick over time. This seems minor until you’re dealing with a stuck power button. Test button feel in reviews before buying.

Cooling and Fan Considerations

Pre-installed fans save money but quality varies. Budget cases include basic fans that work adequately. Premium cases often bundle high-quality fans worth $40-60 if bought separately. Factor this into value calculations.

RGB fans cost $15-25 each which adds up quickly. Three RGB fans plus a controller can run $80. If aesthetics matter to you plan for this cost. Personally I’d rather spend that money on better components but tastes vary.

Fan filters on all intakes are mandatory. Dust buildup kills performance and shortens component life. Removable magnetic filters simplify cleaning. I vacuum mine monthly which takes five minutes and keeps airflow optimal.

Avoiding Common Case Mistakes

Buying based on looks alone leads to thermal issues. Solid front panels with minimal ventilation choke airflow regardless of how good they look. Prioritize function over form especially if you game for extended sessions.

Assuming all mid towers are equivalent causes clearance headaches. Measure your GPU length and CPU cooler height then verify against case specs. A $150 case is worthless if your components don’t fit.

Ignoring front panel I/O needs creates daily annoyance. If you frequently plug in USB devices or headphones front connectivity matters significantly. Rear-only I/O becomes tedious quickly.

Cheaping out on the case to afford better components backfires long-term. A quality case lasts through multiple builds while GPUs get upgraded every few years. Spend appropriately here for a foundation that serves you well.

My Build Foundation Recommendation

For a balanced gaming system pair a 750 watt Gold-rated fully modular PSU with a quality mesh mid tower case. The Corsair RM750x and Fractal Meshify 2 combination costs around $210 and provides excellent performance with room for future upgrades.

Budget builders can make a 650 watt Bronze PSU and $80 mesh case work fine. Just verify component quality through reviews. The money saved goes toward better GPU or CPU which impacts gaming more directly.

Premium builds deserve quality foundations. A Seasonic Prime 850 watt Platinum PSU paired with a Fractal Torrent case ensures stable power delivery and optimal thermals. Your high-end components will thank you with better performance and longevity.

Your case and power supply complete the foundation for an excellent gaming PC. With all the core components covered you’re ready to assemble a system that delivers the performance you need. The combination of carefully selected parts working together creates the gaming experience you’ve been planning for.
